How to handle the blockage in the extrusion die?

Extrusion is a fundamental process in the plastic products industry, where raw plastic materials are transformed into various useful shapes through an extrusion die. However, one common and frustrating issue that plastic products extrusion suppliers often encounter is the blockage in the extrusion die. As a supplier in the plastic products extrusion field, I'd like to share some insights on how to handle this problem effectively.

Understanding the Causes of Extrusion Die Blockage

Before we delve into the solutions, it's crucial to understand the root causes of extrusion die blockage. There are several factors that can lead to this issue.

1. Contaminants in the Raw Materials
   Plastic raw materials may contain impurities such as dust, metal particles, or other foreign substances. These contaminants can accumulate in the die over time, gradually causing blockage. For example, if the plastic resin is stored in an environment with poor air quality, dust can easily mix with the resin. When the contaminated resin is fed into the extruder, the dust particles can get stuck in the narrow channels of the die.

2. Thermal Degradation of Plastic
   During the extrusion process, the plastic is heated to a high temperature to make it flowable. However, if the temperature is too high or the plastic stays in the extruder for too long, thermal degradation can occur. The degraded plastic can form charred or cross - linked materials that adhere to the inner walls of the die, leading to blockage. For instance, some heat - sensitive plastics like PVC are more prone to thermal degradation if the extrusion temperature is not carefully controlled.

3. Incorrect Die Design or Wear
   A poorly designed die may have areas where the plastic flow is restricted or turbulent. This can cause the plastic to accumulate and eventually block the die. Additionally, over time, the die may wear out due to the continuous flow of abrasive plastic materials. Worn - out areas can create rough surfaces where the plastic can stick, increasing the risk of blockage.

Detection of Extrusion Die Blockage

Early detection of die blockage is essential to minimize production downtime and prevent further damage to the equipment. Here are some common signs that indicate a blockage in the extrusion die:

1. Reduced Extrusion Output
   If you notice a significant decrease in the amount of plastic being extruded, it could be a sign of die blockage. The blockage restricts the flow of plastic through the die, resulting in a lower output rate.

2. Uneven Product Dimensions
   Blockage in the die can cause uneven plastic flow, leading to products with inconsistent dimensions. For example, if you are extruding plastic pipes, a blocked die may result in pipes with varying wall thicknesses or diameters.

3. Increased Pressure in the Extruder
   As the plastic flow is restricted by the blockage, the pressure inside the extruder will increase. You can monitor the pressure gauge on the extruder to detect any abnormal pressure spikes.

Handling Extrusion Die Blockage

Once you have detected a blockage in the extrusion die, here are some effective ways to handle it:

1. Mechanical Cleaning
   For minor blockages, mechanical cleaning can be an effective solution. This involves using tools such as brushes, drills, or scrapers to remove the accumulated plastic or contaminants from the die. However, it's important to use the right tools and be careful not to damage the die surface. For example, a soft - bristled brush can be used to gently clean the die channels without scratching them.

2. Chemical Cleaning
   Chemical cleaning is often used for more stubborn blockages. Specialized cleaning agents can be used to dissolve the charred or adhered plastic materials in the die. Before using any cleaning chemicals, make sure to choose a product that is compatible with the die material and the plastic being extruded. You can soak the die in the cleaning solution for a certain period of time, and then rinse it thoroughly with water.

3. Thermal Cleaning
   Thermal cleaning involves heating the die to a high temperature to burn off the accumulated plastic. This method is suitable for removing charred or cross - linked plastic materials. However, it requires careful control of the temperature to avoid damaging the die. You can use a dedicated thermal cleaning oven or a heating element to heat the die.



4. Preventive Maintenance
   To reduce the frequency of die blockage, preventive maintenance is crucial. This includes regular inspection and cleaning of the die, proper storage of raw materials to prevent contamination, and careful control of the extrusion process parameters such as temperature and pressure. For example, you can establish a maintenance schedule to clean the die after a certain number of production hours.

Preventive Measures to Avoid Extrusion Die Blockage

Taking preventive measures can significantly reduce the occurrence of die blockage and improve the overall efficiency of the extrusion process. Here are some preventive steps:

1. Quality Control of Raw Materials
   Implement a strict quality control system for the incoming raw materials. This includes inspecting the materials for contaminants and ensuring that they meet the required specifications. You can use filters or sieves to remove any large particles from the plastic resin before it enters the extruder.

2. Optimal Extrusion Process Parameters
   Carefully optimize the extrusion process parameters such as temperature, pressure, and screw speed. Use a temperature controller to maintain a stable temperature throughout the extrusion process. Adjust the screw speed according to the type of plastic and the die design to ensure a smooth and consistent plastic flow.

3. Regular Die Maintenance and Inspection
   Regularly inspect the die for signs of wear and tear. Replace any worn - out parts promptly. Clean the die after each production run to prevent the accumulation of plastic residues. You can also use anti - sticking coatings on the die surface to reduce the adhesion of plastic.

Case Studies

Let's take a look at some real - world examples of how these solutions work in practice.

1. Case 1: A PVC Extrusion Company

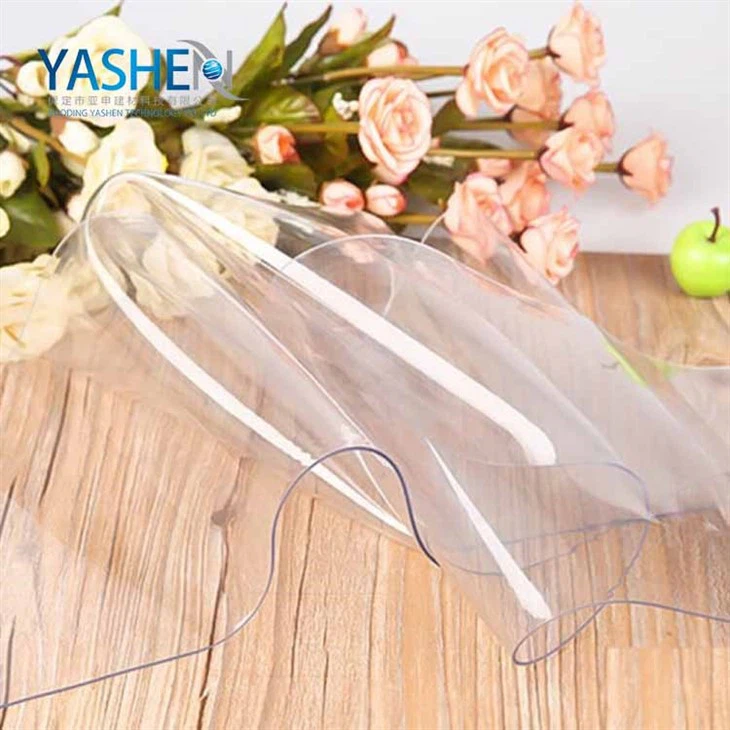

   A company that specializes in manufacturing PVC Strip Curtain Door was facing frequent die blockages. After conducting an investigation, they found that the main cause was thermal degradation of the PVC due to high extrusion temperatures. They adjusted the extrusion temperature and installed a more precise temperature control system. Additionally, they started using a chemical cleaning agent to remove the charred PVC from the die on a regular basis. As a result, the frequency of die blockages decreased significantly, and the production efficiency improved.

2. Case 2: An Anti - Static Plastic Extrusion Supplier
   A supplier of Anti Static Clear Plastic PVC Curtain was experiencing blockages in their extrusion die due to incorrect die design. The die had some sharp corners where the plastic flow was restricted. They redesigned the die to have smoother curves and better flow channels. They also implemented a preventive maintenance program that included regular die cleaning and inspection. After these changes, the blockage problem was effectively resolved.

3. Case 3: A Green Plastic Extrusion Manufacturer
   A manufacturer of Green Clear Anti - Static Pvc Curtain was dealing with die blockages caused by contaminants in the raw materials. They upgraded their raw material storage facilities to keep the plastic resin clean and installed a filter system at the inlet of the extruder. This helped to remove any foreign particles from the plastic before it entered the die, reducing the occurrence of blockages.

Conclusion

Blockage in the extrusion die is a common problem in the plastic products extrusion industry, but it can be effectively managed through a combination of detection, handling, and preventive measures. As a plastic products extrusion supplier, it's essential to understand the causes of die blockage, be able to detect it early, and have a set of strategies to deal with it. By implementing proper quality control, optimizing the extrusion process, and conducting regular maintenance, we can minimize the impact of die blockage on production and ensure the quality of our plastic products.

If you are interested in our plastic extrusion products or have any questions about extrusion die blockage, feel free to contact us for further discussion and potential procurement. We are committed to providing high - quality plastic products and professional technical support.

References

• "Plastics Extrusion Technology" by Allan A. Griff.
• "Extrusion Dies: Design and Engineering Computations" by Manfred G. Menges.
• Industry reports on plastic extrusion processes from various research institutions.
