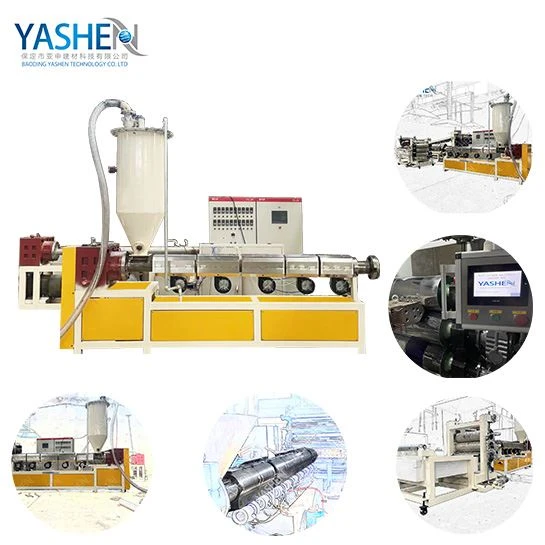

Plastic PVC Strip Curtain Extruder Machine

Plastic PVC Strip Curtain Extruder Machine

1. suitable for continuous operation of various PVC magnetic door curtains, transparent soft glass, and anti-static transparent door curtains; The equipment automatically guides and feeds materials, automatically feeds magnetic strip edging, automatically feeds welding, and automatically rewinds finished products 2. cooperate with high-frequency welding, synchronous feeding/pulling, and two-way selection, and the speed is adjustable. 3. electronic counting, suitable for punching on both sides of different material belts at the same time. 4. The product welding is beautiful and smooth, with high efficiency! 5. another name of the product: soft glass, PVC soft board, crystal board, transparent film, table mat, plastic board * Product color: colorless and transparent * Product width: 62, 72, 82, 92, 100, 102, 122, 132, 142, 152, 162 (CM) * Product thickness: 0.15, 0.2, 0.3, 0.4, 0.5, 0.8, 1.0, 1.2, 1.5, 2.0, 3.0, 4.0, 5.0 (mm) * Applications: families, offices, hotels, hotels, large and small restaurants, supermarkets, hospitals, factories
Send Inquiry
Description
Technical Parameters

Baoding Yashen Technology Co., Ltd. is one of the leading manufacturers and suppliers of plastic pvc strip curtain extruder machine in China, also supports customized service. Please feel free to buy bulk plastic pvc strip curtain extruder machine in stock here from our factory. Also, free sample is available.



Single screw extruder

1)Screw diameter: 120mmdoor curtain extruder
2)Screw aspect ratio: 34:1
3)Screw structure: a new high-efficiency screw
4)Drum screw material: 38C rMoAIA nitriding treatment
5)Nitride layer depth: 0.4-0.7mm
6)Screw hardness: HV> 740
7)Canister hardness: HV> 940
8)Screw rotation speed: 10-50rpm
9)Motor power: 110kw (Shandong famous brand motor)
10)Heating section 8, zone 5kw (cast aluminum + stainless steel air cover)
11)Drum oiling Zone 8*180w
12)ExtrQuantityantity: 180-300kg / hPVC door curtain
13)reducer hard tooth reducer Y200 reducer
14)Install belt drive or direct coupling
15)Gear material of 20CrMnTi by carburized quenching
16)Cooling the condenser
17)Automatic vacuum feeding machine E-200KG type

Door-curtain-extruders
